CNC Machined Double Split Shaft Collar

Name: CNC Machined Double Split Shaft Collar
Brand: PITRUKRUPA ENGINEERING
Price: 850.0 INR
Availability: InStock

Price 850.0 INR/ Piece

Get a Price/Quote

MOQ : 50 Pieces

CNC Machined Double Split Shaft Collar Specification

Usage
Securing components on shafts, axles, guides, and rods

Customization
Available as per drawing or sample

Manufacturing Process
CNC Machined

Tolerance
High precision (on request)

Type
Double Split Shaft Collar

Clamping Type
Double Split (Two-Piece)

Corrosion Resistance
Yes (material dependent)

Material
Stainless Steel / Mild Steel / Aluminium (as per requirement)

Operating Temperature
-40C to +200C (depends on material)

Packaging
As per customer requirement

Bore Size
Customizable as per shaft diameter

Surface Finish
Precision Machined, Brushed / Polished

Product Name
CNC Machined Double Split Shaft Collar

Outer Diameter
Customizable

Application Industries
Automotive, Machinery, Robotics, Automation, Industrial Equipment

Width (Thickness)
Customizable

CNC Machined Double Split Shaft Collar Trade Information

Minimum Order Quantity
50 Pieces

Delivery Time
7 Days

About CNC Machined Double Split Shaft Collar

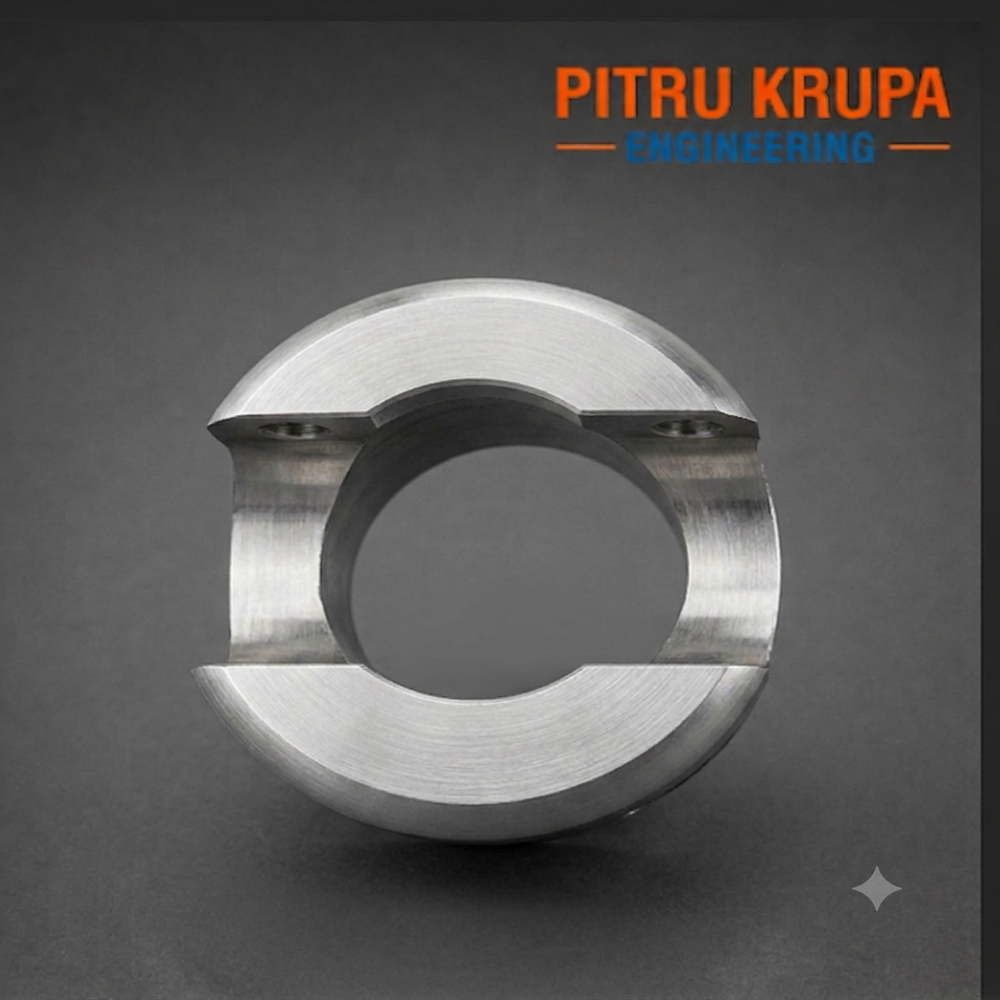

Precision CNC-machined two-piece split shaft collar with a central bore, split-clamping design and threaded locking holes. Suitable for shaft positioning, mechanical stops, timing pulleys, machine tools, automation equipment and industrial machinery. Similar split shaft collars are available in aluminium and steel with various bore sizes.

Versatile Material Options

Choose from stainless steel, mild steel, or aluminium, allowing adaptability for diverse operational environments. Each material offers unique benefits, such as enhanced corrosion resistance for stainless steel or lightweight properties for aluminium, making it easy to match the collar to your application's requirements.

Precision Engineering

Every double split shaft collar is CNC machined to ensure high accuracy and tight tolerances. This guarantees a secure fit on your shafts and repeatable performance. Precision machining also supports custom configurations based on your drawing or sample for specialized needs.

Custom Fit for Your Application

Both the bore size and outer diameter can be tailored to your specifications for optimal compatibility. Additionally, the collar's width-the thickness-can be adjusted as requested, ensuring a perfect match with your shafts, axles, or guides. Our customization extends to the packaging to suit your logistical preferences.

FAQ's of CNC Machined Double Split Shaft Collar:

Q: How does a double split shaft collar differ from other shaft collars?

A: A double split (two-piece) shaft collar is designed to provide better clamping force and easier installation and removal compared to a one-piece or set screw design. Its split construction allows it to be installed without needing to slide it over the end of the shaft, making it ideal for assemblies with pre-mounted components.

Q: What materials are available for the CNC Machined Double Split Shaft Collar?

A: The collar can be produced from stainless steel, mild steel, or aluminium, depending on your application requirements. Each material offers different levels of strength, corrosion resistance, and weight, ensuring versatility for various operational environments.

Q: When should I choose a precision machined shaft collar?

A: You should select a precision machined shaft collar when your application demands exact tolerances, secure clamping force, or when component synchronization and minimal shaft damage are essential-common in robotics, automation, and high-performance machinery.

Q: Where is the double split shaft collar commonly used?

A: This shaft collar is widely used in automotive systems, industrial machinery, robotics, automation equipment, and other applications where reliable component positioning on a shaft, axle, or guide is crucial.

Q: What is the manufacturing process for these shaft collars?

A: The double split shaft collar is CNC machined for dimensional accuracy, superior finish, and excellent repeatability. Precision machining allows tight tolerances and customization based on specific drawings or samples.

Q: How does customization benefit my project?

A: Customization ensures that the collar fits your shaft precisely, meets load and environmental requirements, and integrates seamlessly into your equipment, thereby improving operational reliability and equipment lifespan.
